Metal Cutting Chop Saw Blade
This metal cutting chop saw blade is specially designed for universal and general purpose metal cutting.
Features
This metal cutting chop saw blade is specially designed for universal and general purpose metal cutting. The tungsten carbide tips on the saw blade provide long wear resistance and excellent heat resistance. Meanwhile, the fully hardened steel body can give the blade more accurate cutting and bend resistance, so that can achieve true cutting.
FEATURES & SPECIFICATIONS
★Good cutting performance with safety.
★Clean cut with workable cutting finish.
★No heat, less cutting sparks.
★No vibration.
★Easy and free cutting.
★High cost efficiency, lower energy cost.
★Very high wear resistance.
★Accurate cutting.
★Versatile cutting for various metals with different shape.
★Constant cutting ability and cutting kerf.
Series Nr. | Diameter | Kerf | Body Thickess | Arbor Holes | Teeth Nos | |
Inch | mm | mm | mm | mm | ||
CTB001 | 4" | 100 | 2 | 1.6 | 20/25.4 | 16, 18, 20, 24 |
CTB002 | 5" | 125 | 2 | 1.6 | 20/25.4 | 18, 20, 24, 28, 30 |
CTB003 | 6" | 150 | 2 | 1.6 | 20/25.4 | 24, 26, 28, 30, 32, 36 |
CTB004 | 6-1/4" | 160 | 2 | 1.6 | 20/25.4 | 24, 28, 30, 32, 36, 40 |
CTB005 | 6-3/4" | 170 | 2 | 1.6 | 20/25.4 | 24, 28, 30, 32, 36, 40 |
CTB006 | 7" | 180 | 2.2 | 1.8 | 20/25.4 | 28, 30, 32, 34, 36, 40, 44, 48 |
CTB007 | 7-1/2" | 190 | 2.2 | 1.8 | 20/25.4 | 30, 32, 36, 38, 40, 44 |
CTB008 | 8" | 200 | 2.2 | 1.8 | 20/25.4 | 32, 36, 38, 40, 42, 44, 48 |
CTB009 | 8-1/2" | 216 | 2.2 | 1.8 | 20/25.4 | 36, 40, 42, 44, 48, 52 |
CTB010 | 8-5/8" | 220 | 2.2 | 1.8 | 20/25.4 | 36, 38, 40, 42, 44, 48, 52, 54 |
CTB011 | 9" | 230 | 2.4 | 1.8 | 20/25.4 | 40, 44, 48, 52, 54, 56 |
CTB012 | 9-1/4" | 235 | 2.4 | 1.8 | 20/25.4 | 40, 44, 48, 52, 54, 56 |
CTB013 | 9-1/2" | 240 | 2.4 | 1.8 | 20/25.4 | 40, 42, 44, 46, 48, 52, 54, 56 |
CTB014 | 10" | 250/254 | 2.6 | 2 | 20/25.4 | 40, 48, 50, 52, 60 |
CTB015 | 12" | 300/305 | 2.8 | 2.2 | 25.4/30 | 56, 60, 72, 80 |
CTB016 | 12" | 300/305 | 2.8 | 2.2 | 25.4/30 | 56, 60, 72, 80 |
CTB017 | 14" | 350/355 | 2.8 | 2.2 | 25.4/30 | 64, 66, 70, 72, 80, 84, 90 |
CTB018 | 16" | 400/405 | 3 | 2.4 | 25.4/30 | 76, 84, 96 |
CTB019 | 18" | 450/455 | 3 | 2.4 | 25.4/30 | 84, 96, 100 |
CTB020 | 20" | 500/505 | 3.5 | 2.8 | 25.4/30 | 96, 100, 112 |
CTB021 | 22" | 550/555 | 4 | 3.2 | 25.4/30 | 100, 124 |
CTB022 | 24" | 600/605 | 4.5 | 3.8 | 25.4/30 | 112, 124, 136 |
* Special Specification Also Available As Per Customer's Requirements. | ||||||
APPLICATION

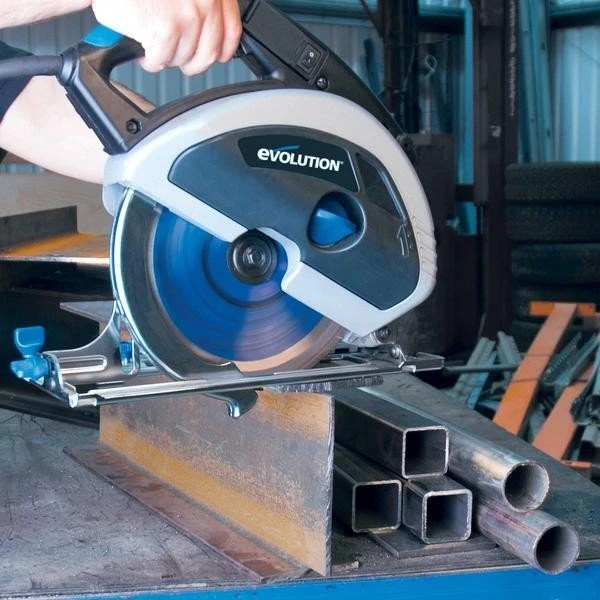

This advanced carbide blade easily cuts off many types of metal materials. Such as steel studs, steel sheets, metal rods, steel pipes, channels, rebar, roofing and so on. It also can cut nonmetals, like PVC, plastic, etc….
How do we make our products with high quality?
1). Steel body:
We choose high-quality steel plate with salt bath heat treatment. So the hardness of saw body and metallic structure are very even, ensuring good cutting performance and friction reducing.
2). Carbide tips:
The micro-grain tungsten carbide tip is used to achieve the correct cutting quality and long-life characteristics. Usually, we use the tungsten carbide tips from Japan or Eu, such like C -6 grade.
3). Production equipments:
Our production precision is guaranteed by advanced automatic gear welding machines and gear grinding machines. All the equipments of main production process are from Germany and Swiss.
4). Professional design:
According to the purpose of cutting blade, we design reasonable tooth profile and angle to ensure smooth and clean cutting surface.
5). Rich experience:
We have decades of R&D experience on saw blade production and design to make it more secure and more precise.
6). Strict quality control system:
All the blades have to be inspected strictly according to our technical standards, and carefully make the inspection records.
