Diamond Saw Blade for Granite

Diamond saw blade for granite

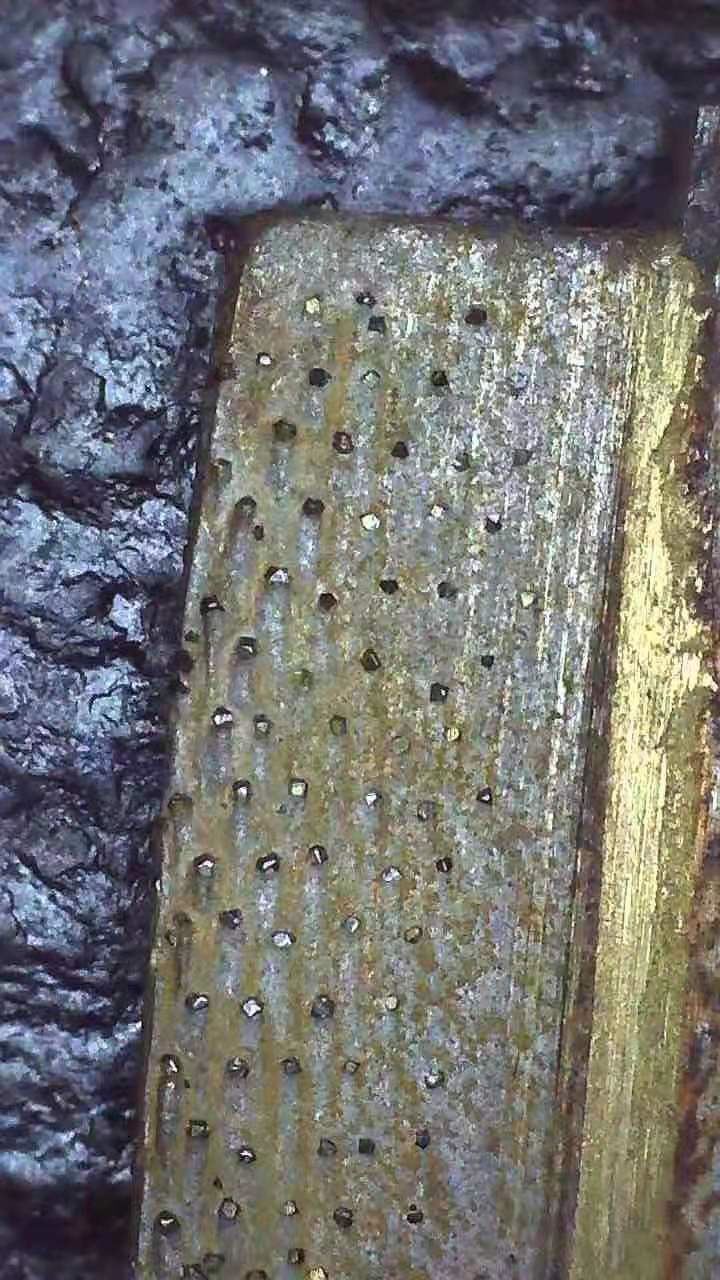

Diamond circular saw blade has been widely used as an effective tool in basic industry application such like sawing, cutting, trimming. Take granite cutting as an example, Arix diamond saw blade for granite is a creative and successful tool. Supported by Arix technology which makes every diamond grit position as matrix, the blade will be fast and easy cutting, flexible, as well as operating at a good accuracy on the cut surface.

Besides diamond arrayed distribution segment, we also have many studies and experience on blade tension, leveling and straightening, etc…. As we know, different market has different cutting condition and cutting parameters, so we adjust the technical standards accordingly to ensure our entire blade have correct quality. All of our diamond saw blade for granite are also seriously produced and strictly checked.

Conclusively, there are many highlights of the advanced Arix saw blade.

1). Excellent cutting performance with great sharpness.

2). High precision cutting with flat surface and even size of slabs.

3). less noise in sawing workshop.

4). Stable cutting quality.

5). Light burden on saw machine motor.

6). Free cutting with optimum life.

7). Make your stone slab more competitive, because of lower labor cost and less energy cost.

Granite Diamond Blade

Special Specifications Are Also Available.

What are the Sawing parameters to affect the cutting efficiency and life of diamond circular saw blades?

(1) Linear speed of the saw blade:

In actual work, the linear speed of the diamond circular saw blade is limited by the equipment conditions, the quality of the saw blade and the nature of the stone being sawed. From the perspective of the best saw blade service life and sawing efficiency, the linear speed of the saw blade should be selected according to the properties of different stone materials.

When sawing granite by diamond saw blade for granite, the linear speed of the saw blade can be selected within the range of 25m to 35m/s. For granite with high quartz content and difficult to saw, it is advisable to take the lower limit of the saw blade linear speed. When producing granite face tiles, the diameter of the diamond circular saw blade used is small, and the linear speed can reach 35m/s.

(2) Cutting depth:

Cutting depth is an important parameter related to diamond wear, effective sawing, force on the saw blade and properties of the stone being cut. Generally speaking, when the linear speed of the diamond circular saw blade is high, a small cutting depth should be selected. From the current technology, the cutting depth of diamond can be selected between 1mm and 10mm. Usually, when sawing granite blocks with a large-diameter saw blade, the sawing depth can be controlled between 1 mm and 2 mm, and the feed speed should be reduced at the same time. When the linear speed of the diamond circular saw blade is high, a large cutting depth should be selected.

However, within the permissible range of saw machine performance and tool strength, a larger cutting concentration should be used for cutting to improve cutting efficiency. When there is a requirement for the machined surface, a small depth of cutting should be used.

(3) Feed speed:

The feed speed is the feed rate of the sawed stone. Its size affects the cutting rate, the force on the saw blade and the heat dissipation in the sawing area. Its value should be selected according to the nature of the stone being sawn.

Generally speaking, when sawing soft stones, such as marble, the feed speed can be increased appropriately. If the feed speed is too low, it is more conducive to improving the sawing rate. When sawing fine-grained and relatively homogeneous granite, the feed speed can be appropriately increased. If the feed speed is too low, the diamond blade will be easily ground.

However, when sawing granite with coarse-grained structure and uneven hardness, the feed speed should be reduced, otherwise it will cause saw blade vibration and cause diamond fragmentation to reduce the sawing rate.  The feed speed for sawing granite is generally selected within the range of 9m to 12m/min.
