Diamond Blade for Artificial Stone
Along with environmental protection and strictly control across the world, the artificial stone is more and more popular.
Features

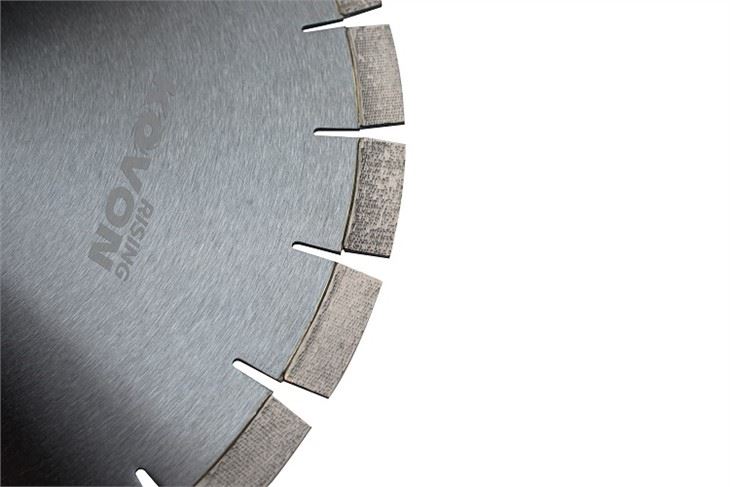

Diamond blade for artificial stone
Along with environmental protection and strictly control across the world, the artificial stone is more and more popular. Basically, the artificial stone constructed from cement, sands and natural aggregate such as crushed stone. At the same time, many other types of artificial stone come out, such as the DEKTON which is innovative, ultra-compact and high-performance surface. More and more artificial stone have high hardness than natural stone. So it asks the diamond blade for artificial stone sharp and clean cutting without any chipping.

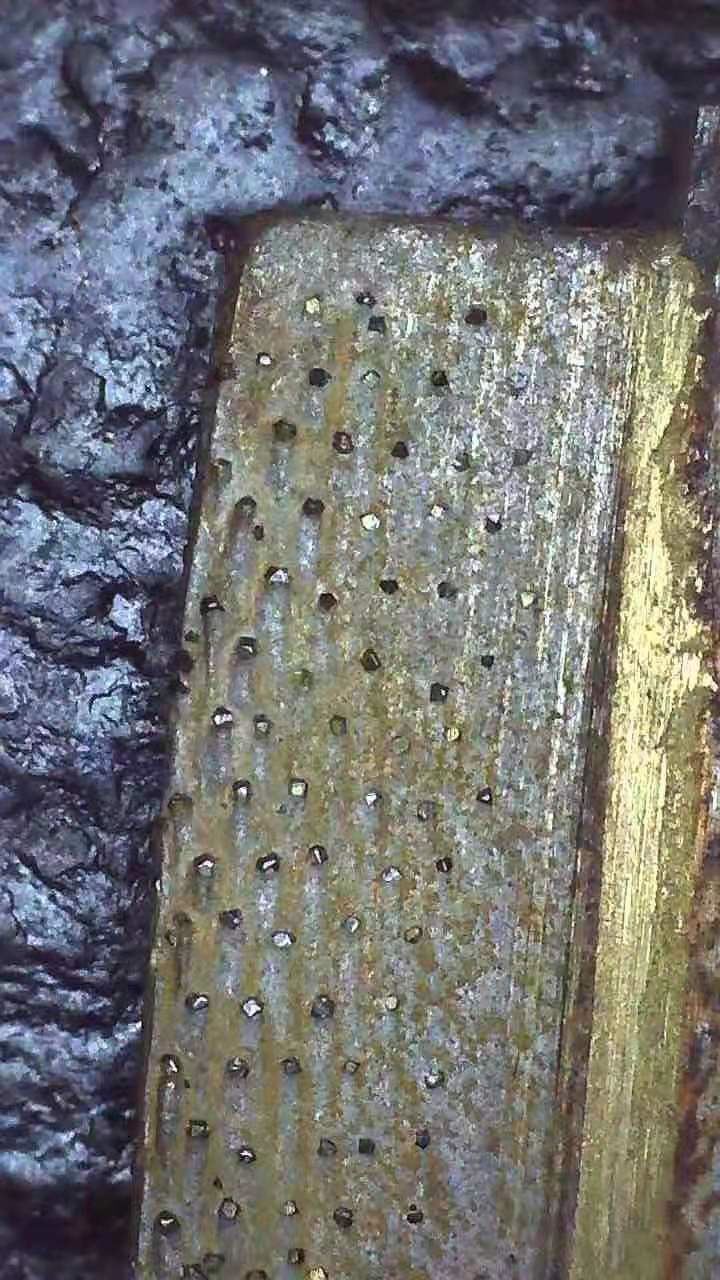

Our diamond matrix positioning technology which insders call it as Arix is successfully researched. The individual diamond particles in every lines and working layer can be precisely distributed. This technology can be fulfilling with different request. Coordinating with other factors, our diamond blade for artificial stone has excellent quality.
Hereby, you can find many advantages of our Arix blade,
1). Fast and easy cutting.
2). Clean cutting with smooth edge.
3). Excellent cutting performance with less noise.
4). Stable cutting quality.
5). Light burden on saw machine motor.
6). Correct tensioned blade with optimum life.
7). Make your stone slab more competitive, for lower labor and energy cost.
Granite Diamond Blade
Item No. | (D)Outer diameter | Bore | Body THK | Teeth | Segment Info | Welding Solution | ||||
inch | mm | Length | Width | Heght | Brazed | Laser | ||||
ABG-2501 | 10 | 250 | 50/60 | 2.0/2.2 | 18 | 40 | 2.8 | 13/14 | √ | √ |
ABG-3001 | 12 | 300 | 50/60 | 2.0/2.2 | 21 | 40 | 3.0(3.2) | 13/14 | √ | √ |
ABG-3501 | 14 | 350 | 50/60 | 2.2 | 24/25 | 40 | 3.0(3.2) | 13/14 | √ | √ |
ABG-4001 | 16 | 400 | 50/60 | 2.6/2.8 | 28 | 40 | 3.4(3.6) | 13/14 | √ | √ |
ABG-4501 | 18 | 450 | 50/60 | 3.0/3.2 | 28 | 40 | 3.8 | 13/14 | √ | √ |
ABG-5001 | 20 | 500 | 50/60 | 2.8/3.0 | 30 | 40 | 4.2 | 13/14 | √ | √ |
ABG-5501 | 22 | 550 | 50/60 | 3.0/3.2 | 32 | 40 | 4.4 | 13/14 | √ | √ |
ABG-6001 | 24 | 600 | 50/60 | 3.5 | 36 | 40 | 4.8 | 13/14 | √ | √ |
ABG-6501 | 26 | 650 | 50/60 | 3.5/4.0 | 40 | 40 | 5 | 13/14 | √ | √ |
ABG-7001 | 28 | 700 | 50/60 | 4.0/4.2 | 42 | 40 | 5.2 | 13/14 | √ | √ |
ABG-8001 | 32 | 800 | 60/80 | 4.2/4.5 | 46 | 40 | 5.8 | 13/14 | √ | √ |
ABG-9001 | 36 | 900 | 80/100 | 5 | 64 | 24 | 7.0/6.4 | 13/14 | √ | √ |
ABG-10001 | 40 | 1000 | 80/100 | 5.5 | 70 | 24 | 7.4/6.8 | 13/14 | √ | √ |
ABG-12001 | 48 | 1200 | 100/120 | 5.5 | 80 | 24 | 7.8/7.2 | 13/14 | √ | √ |
ABG-13001 | 52 | 1300 | 100/120 | 6.0/6.5 | 88 | 24 | 8.4/7.8 | 13/14 | √ | √ |
ABG-16001 | 64 | 1600 | 100/120 | 7.2 | 108 | 24 | 9.2/8.6 | 13/14 | √ | √ |
ABG-18001 | 72 | 1800 | 100/120 | 8 | 120 | 24 | 10/9.4 | 13/14 | √ | |
ABG-20001 | 80 | 2000 | 100/150 | 8 | 128 | 24 | 10.8/10.2 | 13/14 | √ | |
ABG-22001 | 86 | 2200 | 100/150 | 8.0/8.5 | 132 | 24 | 10.8/10.2 | 13/14 | √ | |
ABG-25001 | 100 | 2500 | 100/150 | 8.0/8.5/9.0 | 140 | 24 | 11.8/11.2 | 13/14 | √ | |
ABG-30001 | 120 | 3000 | 100/150 | 9.0/9.5/10.0 | 160 | 24 | 12.0/13.0 | 13/14 | √ | |
ABG-35001 | 140 | 3500 | 100/150 | 9.0/9.5/10.0 | 180 | 24 | 12.0/13.0 | 13/14 | √ | |
Special Specifications Are Also Available.
Q1. How is your quality?
A1. We pay full attention on saw blade of diamond particles matrix positioning technology. And this type of saw blade is good at artificial stone.
Q2. Can you offer us technical support?
A2. Absolutely right. We can serve at any time with our experienced team.
Q3. How can you get the best quality diamond saw blades?
A3. We need the details when you place order as followed:
1) Stone properties, such as hardness, abrasiveness and the material compostion.
2) Cutter info, such as main motor, feeding speed, RPM etc.
3) Expected lifespan, sharpness etc.
Some tips of working principle of Diamond Saw Blades:
1). Diamond saw blades come in a variety of sizes, types and function
Ranging from small 6" blades used in angle grinders to maximum 35" blades used in masonry construction .For every type of application there is a blade designed especially ,which explains the large and still growing diamond blade industry .
2). Diamond saw blades are constructed from two major components:
The diamond crystals and the metal bond or matrix that holds them together .This combination of matrix and diamonds circumscribe the blade , making up the rim .When the blade is being applied to masonry , ceramics ,and other function, the diamonds aid in cutting the material. Diamond crystals exposed at the edge will slowly wear down, along with the bonds that hold them to the blade. The abrasive action of the material being cut erodes the bond exposing new diamonds.
3). Each diamond blade is designed for use on a specific range of materials.
If the material being cut is soft or abrasive, the bond on the blade is hard so the bond does not prematurely release the diamonds. If the material being cut is hard or less abrasive, the bond on the blade is softer so the diamonds release before they become too worn to cut .It is very important that the right blade is used for every application; otherwise, damage may be inflicted on the blade, machinery, or in rare cases, the operator.
