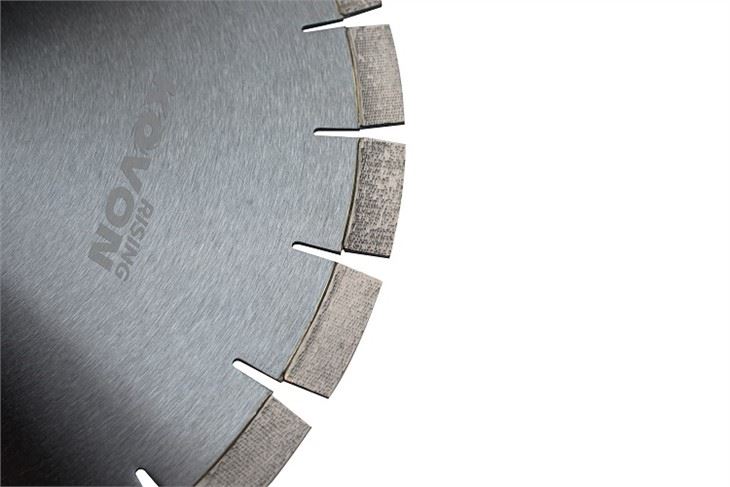

Granite Diamond Saw Blade

Granite diamond saw blade

Just as stone factories and blade suppliers know, everyone wins when diamond saw blade is cutting fast and better than expected.

With this in mind forever, our company creatively developed an advance diamond particles even distribution technology. All the automatic machines ensure the diamond grits distribute orderly and uniformly. Just as Arix segment blade, our granite diamond saw blade also have great sharpness and long lifespan. This is the only solution at present to get both fast cutting speed and wear resistance simultaneously.

By using this excellent 3D positioning diamond particles technology, all of our granite diamond saw blade can meet with your requirements unexpectedly, whatever for multi blade cutting, single blade cutting, edge cutting, splitting or other general cutting.

Features of our matrix arrayed diamond saw blade,

1). Higher cutting speed, approx. 50% than conventional blade..

2). Straight and smooth cutting without chipping.

3). Lower noise on working spots.

4). Higher feed speed and production yield.

5). Less electric current to protect machine motor.

6). Strong applicability for many kinds of granite.

7). Lower labor cost per unit cut.

Granite Diamond Blade

Special Specifications Are Also Available.

Quality Control:

1. All raw materials have to be inspected.

2. All finshed products are inspected and approved before packed.

3. Every production procedure has been strictly controlled.

Packaging & Shipping

Packing and package depends on the customer' s requirements.

If: 1. By air

Min. weight 50kgs; Freight cost as per your airport.

2. By Express

All internatonal courier are available, such like DHL, UPS, TNT etc. Usually less than 50 kgs parcel.

3. By sea

Only quantity order. LCL - Less than Container Load and FCL-Full Container Load.

How can we take care of the blade? (Part A)

Advice concerning the proper use and care of blades to ensure efficient use and long blade life.

When operating a saw you can't go wrong if you let these ten rules guide you.

Ten princeples:

1.Run Blades at the Right Speed - Recommended operating speed for diamond saw blades are between 8,000 and 11,000 surface feet per minute. Lower speeds are recommended for green concrete, and hard dense materials, such as granite. Higher speeds are recommended for cured concrete, asphalt and soft abrasive materials. When using large diameter blades it is mandatory to change sheaves in order to operate at recommended operating speeds.

2.Use Water - A good water flow equally on both sides of the blade of about four to five gallons per minute(not high pressure)is best. Hydrant pressure is more than required.

3.Mounting- When the blade is snagged up evenly with clean equal size flanges, which are free of burrs and rust, it runs straighter and truer for maximum cutting efficiency. Bad seating results in lopsided wear, egg shaped or burnt arbor holes.

4.Use the Right Specification - Through years of testing, special specifications have been developed to give the best cutting for each application. Green concrete, old concrete, bricks and clay, asphalt, etc..., all have blades made especially for them. Make sure the blade is suited to your cutting job, and your blade will cut faster and easier while maintaining a longer life span.

5.Use Power - The more horsepower ( torque , not pressure on the blade ) supplied to the spindle, the more efficient the cutting action will be . Low horsepower may require a softer bond.
