Block Cutting Saw Blade for Marble

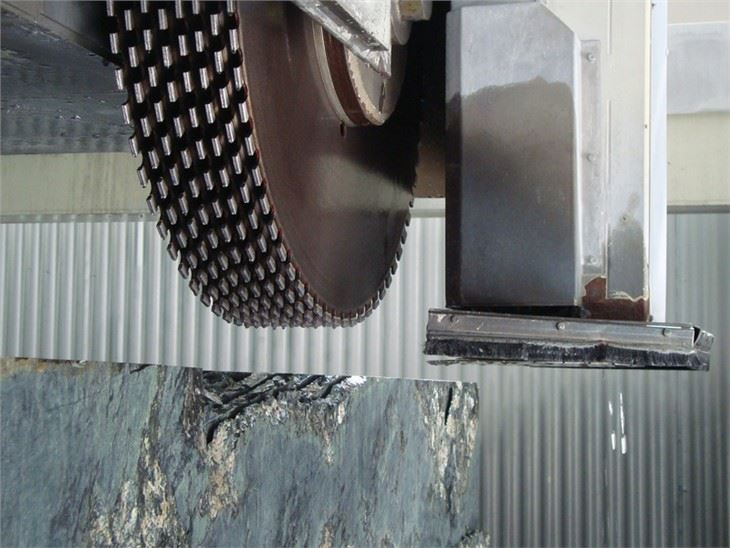

Traditionally, marble is cut by block cutter machine with smaller or irregular dimensions of the stone block. More modernly, someone use multi wire to cut regular and bigger ones.
Features

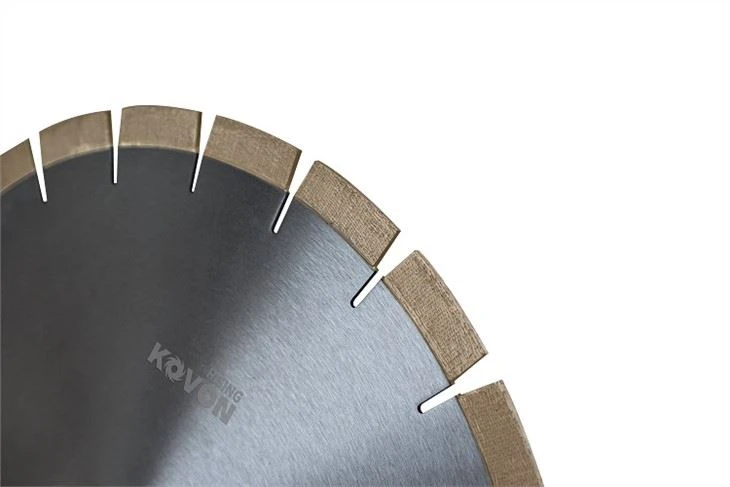

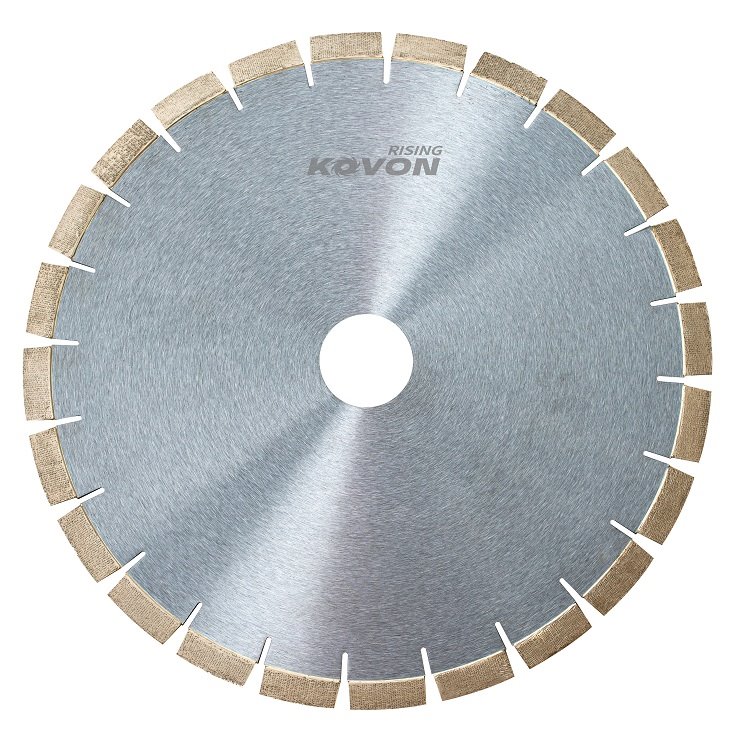

Block cutting saw blade for marble
Traditionally, marble is cut by block cutter machine with smaller or irregular dimensions of the stone block. More modernly, someone use multi wire to cut regular and bigger ones. Just for this features of smaller and irregular dimensions, all the stone processing plant requires more effective block cutting saw blade for marble.

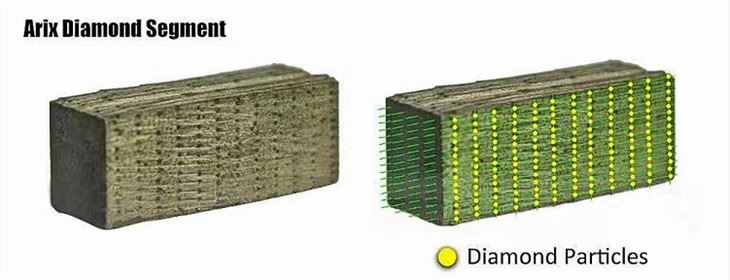

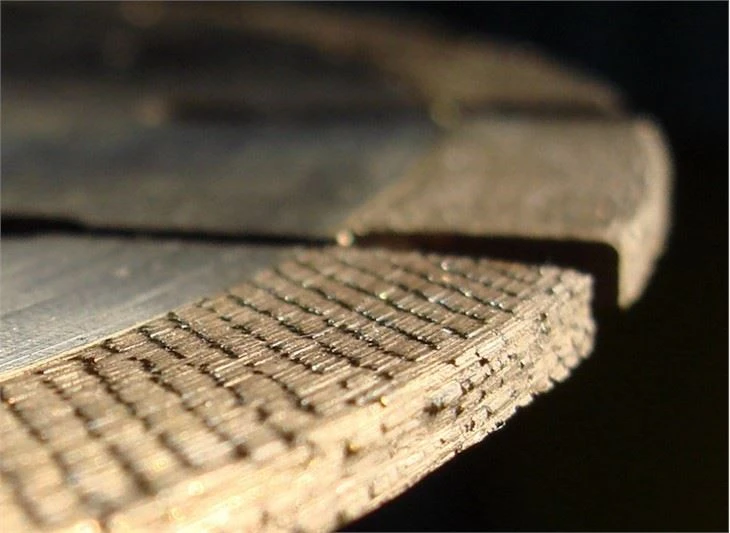

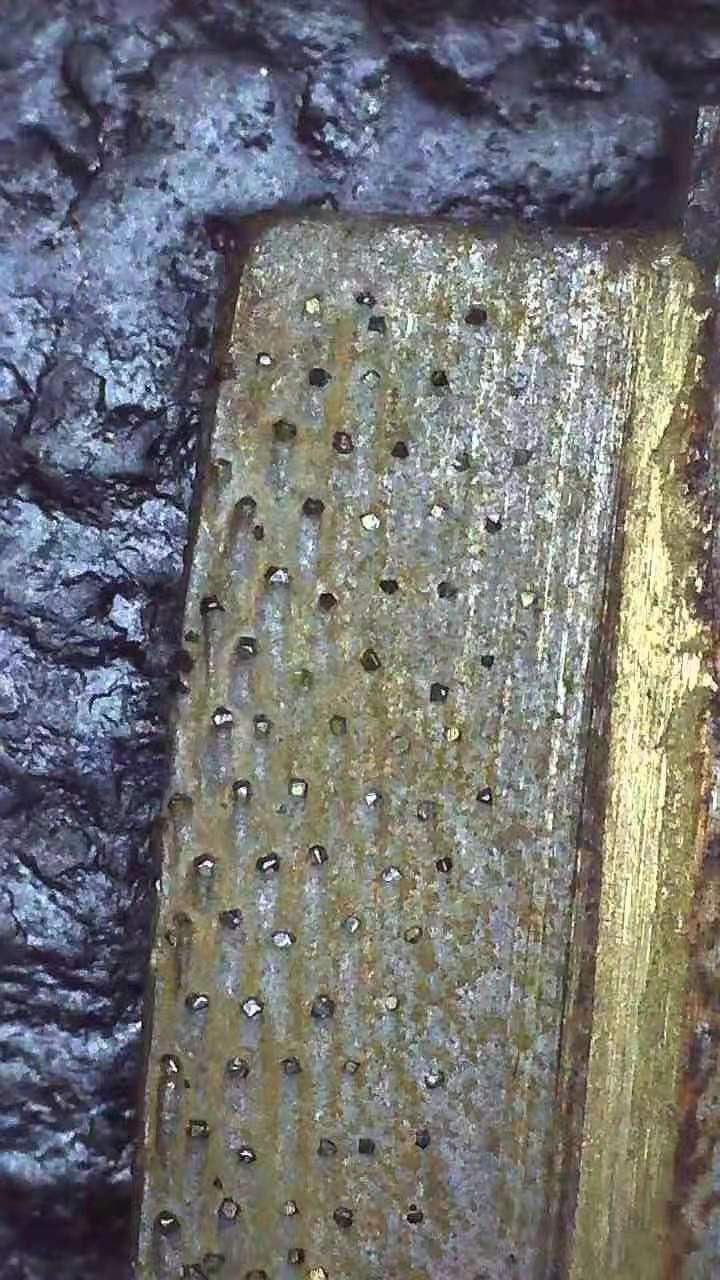

Considering the irregular dimension of marble block makes the cutting performance of conventional marble cutting drop too much, we research and develop the advance block cutting saw blade for marble with special segment technology. Through this tech, the individual diamond grits can distributed evenly and orderly on every working layers of metal bond. So every diamond can be fully used to cut. So the sharpness and quality can be guaranteed.
Hereby, we summarize the advantages of our saw blade conclusively, as follows
1). Excellent free chipping finish.
2). Clean cutting with smooth surface.
3). Both vertical blade and horizontal cutting blade are available.
4). Stable quality .
5). Less cutting friction force make saving power.
6). Fulfil customer's requirements of one cut to bottom.
7). Optimum blade life.
Marble Diamond Blade
Item No. | （D)Outer diameter | Bore | Body THK | Teeth | Segment Info | Welding Solution | ||||
inch | mm | Length | Width | Heght | Brazed | Laser | ||||
ABM-2501 | 10 | 250 | 50/60 | 2.0/2.2 | 18 | 40 | 2.8 | 13/14 | √ | √ |
ABM-3001 | 12 | 300 | 50/60 | 2.0/2.2 | 21 | 40 | 3.0(3.2) | 13/14 | √ | √ |
ABM-3501 | 14 | 350 | 50/60 | 2.2 | 24/25 | 40 | 3.0(3.2) | 13/14 | √ | √ |
ABM-4001 | 16 | 400 | 50/60 | 2.6/2.8 | 28 | 40 | 3.4(3.6) | 13/14 | √ | √ |
ABM-4501 | 18 | 450 | 50/60 | 3.0/3.2 | 28 | 40 | 3.8 | 13/14 | √ | √ |
ABM-5001 | 20 | 500 | 50/60 | 2.8/3.0 | 30 | 40 | 4.2 | 13/14 | √ | √ |
ABM-5501 | 22 | 550 | 50/60 | 3.0/3.2 | 32 | 40 | 4.4 | 13/14 | √ | √ |
ABM-6001 | 24 | 600 | 50/60 | 3.5 | 36 | 40 | 4.8 | 13/14 | √ | √ |
ABM-6501 | 26 | 650 | 50/60 | 3.5/4.0 | 40 | 40 | 5 | 13/14 | √ | √ |
ABM-7001 | 28 | 700 | 50/60 | 4.0/4.2 | 42 | 40 | 5.2 | 13/14 | √ | √ |
ABM-8001 | 32 | 800 | 60/80 | 4.2/4.5 | 46 | 40 | 5.8 | 13/14 | √ | √ |
ABM-9001 | 36 | 900 | 80/100 | 5 | 64 | 40/24 | 7.0/6.4 | 13/14 | √ | √ |
ABM-10001 | 40 | 1000 | 80/100 | 5.5 | 70 | 40/24 | 7.4/6.8 | 13/14 | √ | √ |
ABM-12001 | 48 | 1200 | 100/120 | 5.5 | 80 | 40/24 | 7.8/7.2 | 13/14 | √ | √ |
ABM-13001 | 52 | 1300 | 100/120 | 6.0/6.5 | 88 | 40/24 | 8.4/7.8 | 13/14 | √ | √ |
ABM-16001 | 64 | 1600 | 100/120 | 7.2 | 108 | 40/24 | 9.2/8.6 | 13/14 | √ | √ |
ABM-18001 | 72 | 1800 | 100/120 | 8 | 120 | 40/24 | 10/9.4 | 13/14 | √ | |
ABM-20001 | 80 | 2000 | 100/150 | 8 | 128 | 40/24 | 10.8/10.2 | 13/14 | √ | |
Special Specifications Are Also Available.
Safety Advices
Before use the diamond saw blade, kindly ensure that:
1. The blade will be operated at the recommended speed.
2. The blade will be fed at a suitable rate.
3. An adequate supply of water for cooling is available while cutting.
4. The blade is in a suitably undamaged condition.
5. The blade is never twisted or forced in the cut.
6. The blade is gradually lowered into the material being cut.
7. The material being cut is tightly fastened, without any moving or shaking.
8. The blade and machine are periodically inspected for wear or damage.
For personal safety, we always ensure that you:
1. Wear suitable ear defenders.
2. Wear suitable foot wear.
3. Wear suitable eye protection.
4. Wear suitable protection against dust.
5. Wear suitable clothing.
6. Read the instructions carefully.
