Granite Segment

Granite segment

As we know, there are a lot of different kinds of granite across the world. All the customers want to find a type of diamond segment can cut granites as wide range as possible. We are the correct one who can give the best solution because of our arrayed diamond granite segment, which is similar as Arix segments.

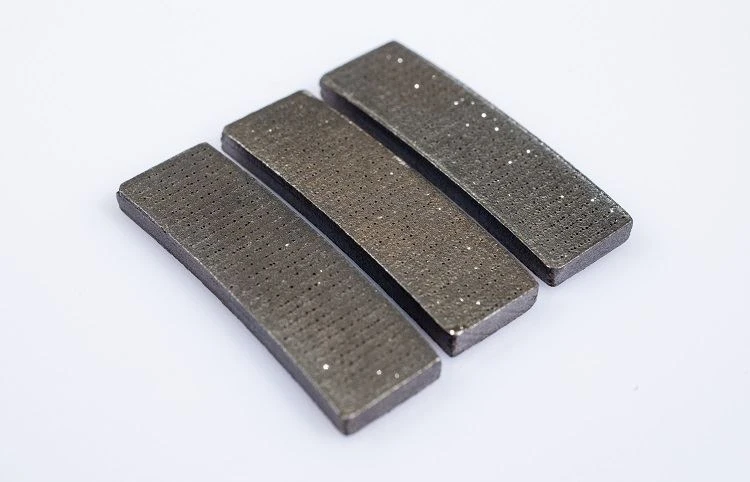

The diamond particles in this kind of granite segment is arrayed distributed, that is to say, this kind of technology can make every diamond particle precisely positioned in 3 dimensions pattern in every working layer. As a result of this, it can provide the excellent cutting performance in almost all different granite cutting. This sophisticated diamond distribution technology can enhance on segment life and cutting efficiency, significantly.

1). Sharp and clean cutting, definitely.

2). Longer life than conventional diamond segments.

3). Lower noise, thanks to the sharp cutting.

4). Higher cutting speed.

5). Lower electric current and save power.

6). Universal cutting.

7). Low cost per sqm of stone slab.

Special Specifications Are Also Available.

Why choose us?

1. We have capable R&D team to give services in any stage. Such like In the process of product planning, cutting quality control, etc… We can meet customers' customization demands.

2. We have a quick response, professional and well-trained after-sales service team.

3. Professional and experienced service and knowledge can accurately hold the market position, understanding the market working conditions and customer demands from different markets, then give customers professional and proper solutions.

How can we choose the correct quality of diamond crystals?

1. Selection of diamond particle size

When the diamond particle size is coarse and single, the saw blade head is sharp and the sawing efficiency is high, but the bending strength of diamond segment decreases; when the diamond particle size is fine or the coarse and fine particle sizes are mixed, the saw blade head has high durability, but less cutting efficiency.  Taking the above factors into consideration, it is more appropriate to choose a diamond particle size of 50/60 mesh.

2. Selection of diamond distribution concentration

Within a certain range, when the diamond concentration changes from low to high, the sharpness and cutting efficiency of the saw blade with diamond granite segment will gradually decrease, while the service life will gradually prolong; but if the concentration is too high, the saw blade will become blunt.  When we use of low concentration and coarse particle size, the efficiency will be improved. Utilizing the different functions of diamond saw blade, different concentrations are used (that is, a lower concentration can be used for the middle layer in a three-layer or more layer structure), and a middle groove is formed on diamond segments during the sawing process, which has a certain effect.  It is beneficial to prevent the saw blade from deflecting, thereby improving the quality of stone processing.

3. Selection of diamond strength

The strength of diamond crystals is an important indicator to ensure cutting performance.  If the strength is too high, the crystal will not be easily broken, the abrasive grains will be polished during use, and the sharpness will decrease, resulting in the deterioration of the tool performance. If the diamond strength is not enough, it will be easily broken after being impacted, and it is difficult to bear the heavy responsibility of cutting. Therefore, the strength should be selected at 130-140N.

==============================================================================================================
